LIVE CENTERS
Heavy Duty, Extra & Double Extra Heavy Duty

THE ULTIMATE IN LIVE CENTERS, ROOFE HEAVY DUTY, EXTRA HEAVY DUTY AND DOUBLE EXTRA HEAVY DUTY LIVE CENTERS.  THREE ANGULAR CONTACT BEARINGS COUPLED WITH LARGE DIAMETER TAIL BEARINGS PRODUCE THE HIGHEST LOAD CAPACITIES PRESENTLY OFFERED IN STANDARD OFF-THE-SHELF LIVE CENTERS.  ROOFE REVOLVING "O" RING SEAL, STREAMLINED DESIGN, SHORT OVERHANG,PERMANENTLY GREASED BEARINGS, LOAD CAPACITIES FROM 2000 TO 90,000 LBS. OFFERED STANDARD IN THREE GRADES WITH REGULAR OR TRACER POINT ALL COMBINE TO MAKE THIS CENTER THE LEADER OF ALL CENTERS!



NOMINAL SIZE	MORSE TAPER	LOAD CAPACITY (LBS)	MEASUREMENTS (INCHES)

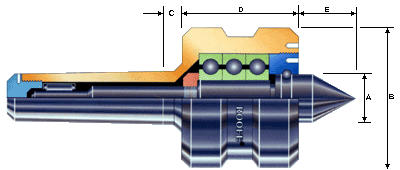

			A	B	C	D	E
HD-2	2M	2000	3/4	1-15/16	5/16	2	1
XHD-3	3M	4000	5-5/64	2-3/16	5/16	2-5/16	1-1/8
XHD-4	4M	10000	1-1/16	2-23/32	3/8	2-9/16	1-1/4
HD-5	5M	16000	1-1/2	3-5/8	3/8	3-1/4	1-5/8
XHD-5	5M	20000	2-1/64	4-1/2	7/16	3-7/8	2-1/8
HD-6	6M	20000	2-1/64	4-5/8	1/2	3-7/8	2-1/8
XHD-6	6M	30000	2-1/16	5-1/2	1/2	4-15/32	2-1/4
XXHD-6	6M	45000	2-5/8	6-5/8	5/8	4-15/16	2-21/32
XHD-7	7M	30000	2-1/16	5-1/2	11/16	4-15/32	2-1/4
XXHD-7	7M	45000	2-5/8	6-3/4	11/16	4-15/16	2-21/32
XHD-8	8M	90000	3-3/4	9-3/4	7/8	7-1/4	3-7/8
